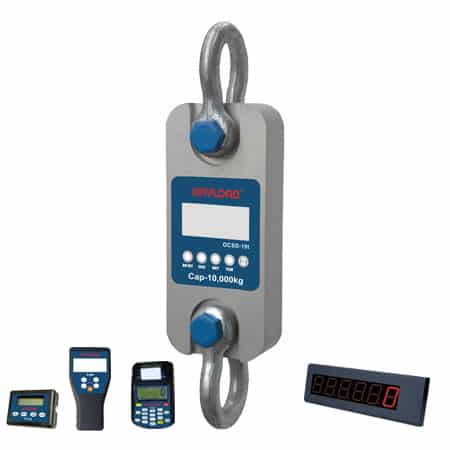

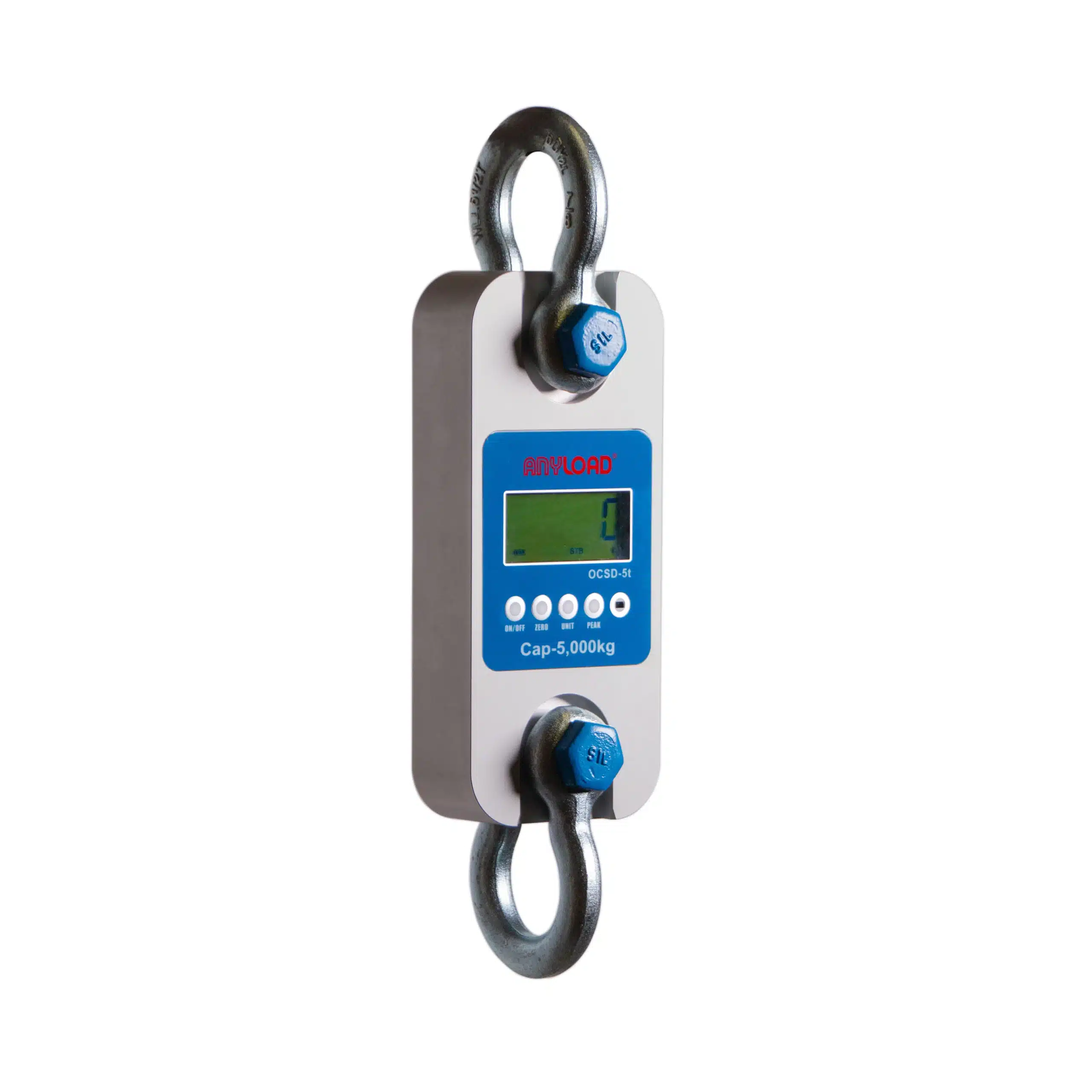

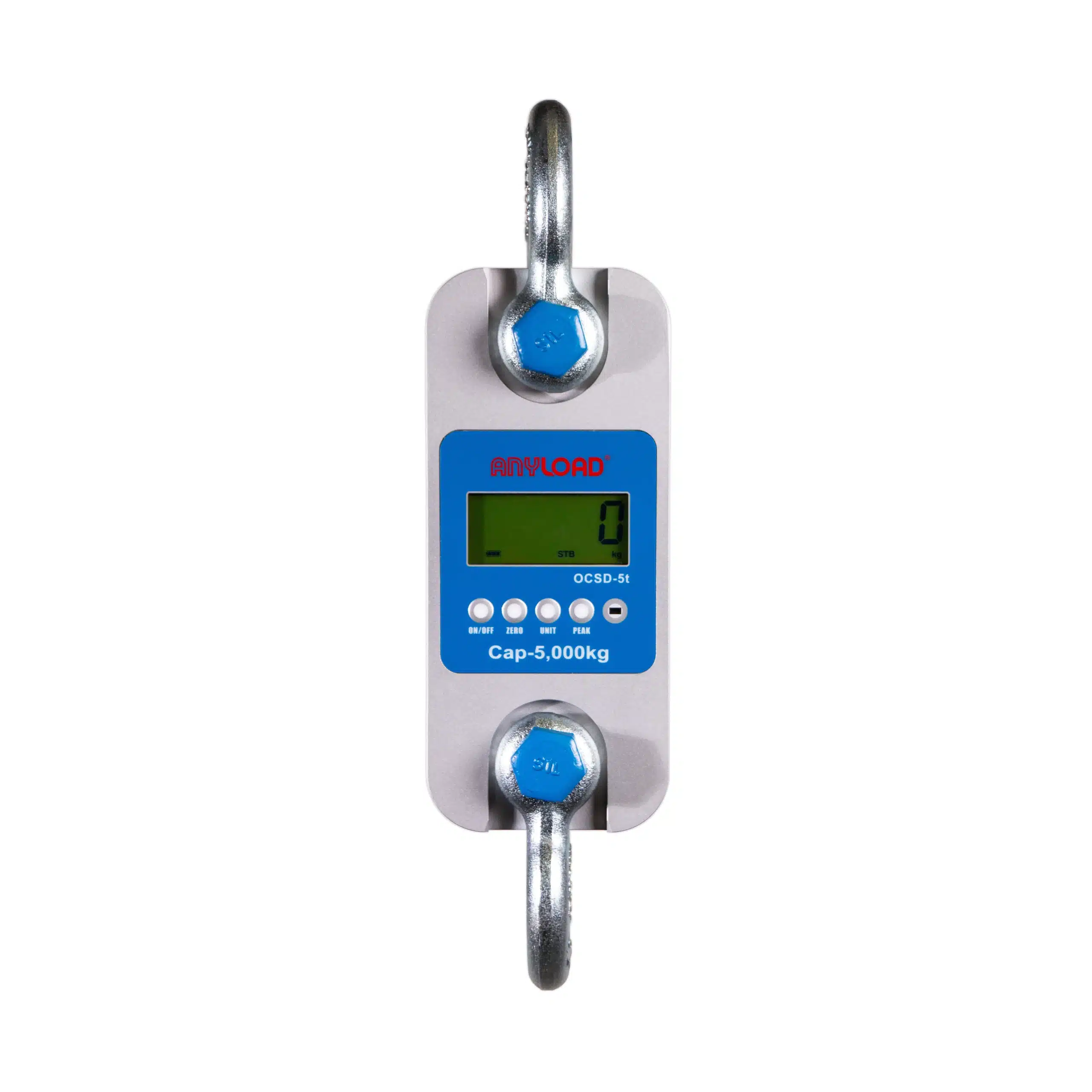

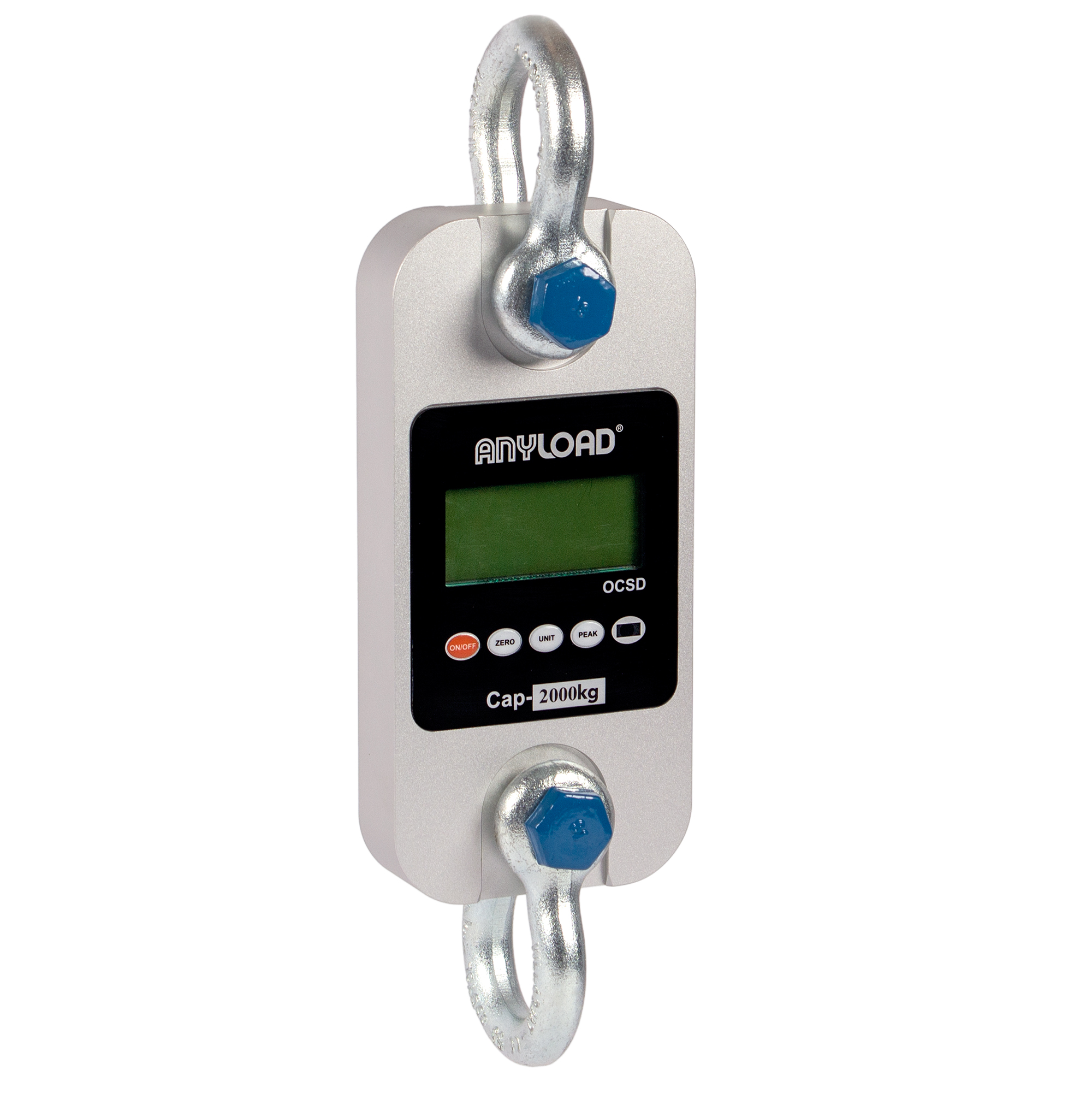

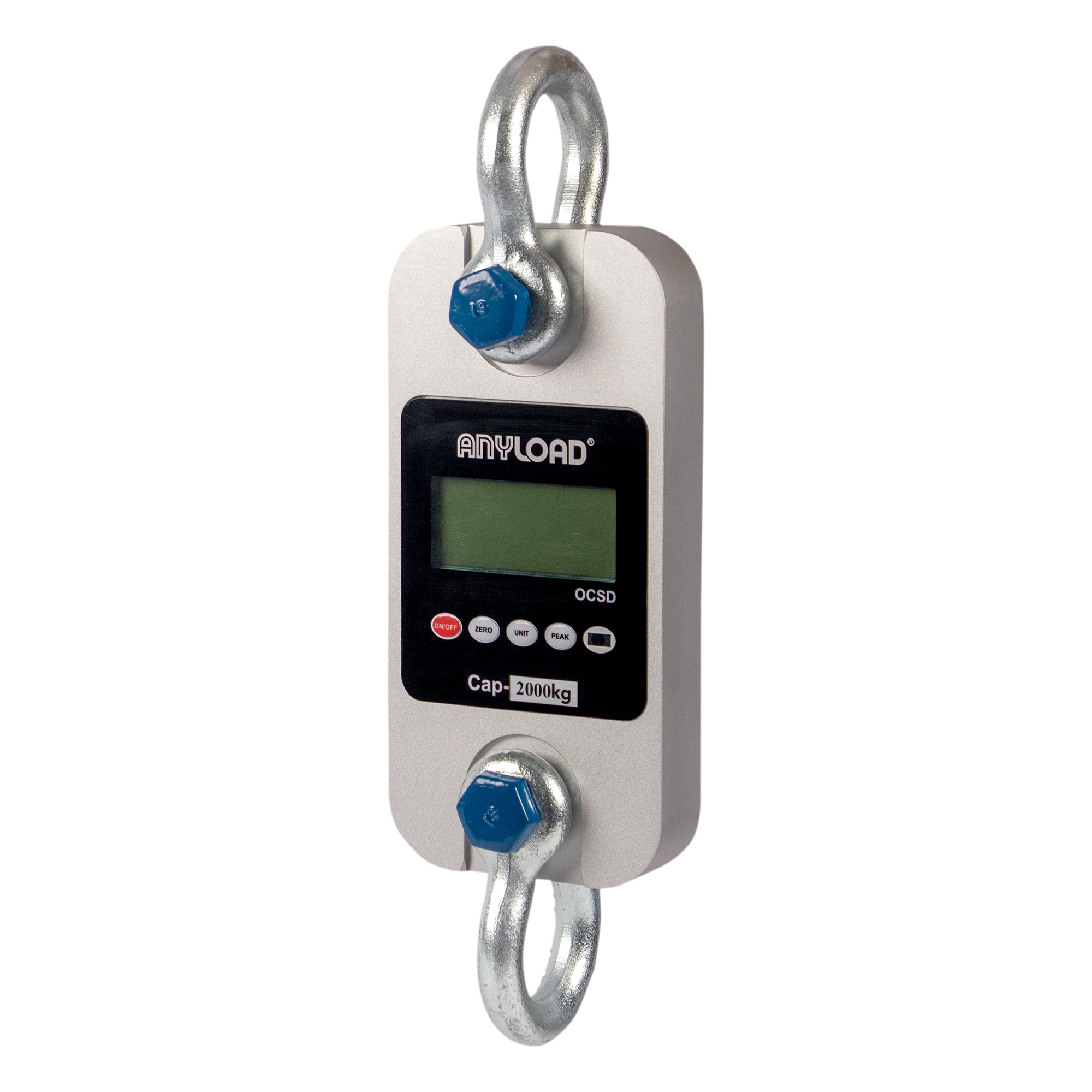

OCSD Wireless Dynamometer

Capacities: 1t, 2t, 3t, 5t, 10t, 20t, 30t, 50t, 100t, 200t
Accuracy Class: OIML III
Safe Overload: 120% of full scale
Breaking Overload: 400% of full scale
Aluminum enclosure for capacities 5t and below
Alloy steel enclosure for capacities 10t and above
Selectable units: kg, lb, t, N, kN
3 x AA batteries
Factory calibrated
Indicator, scoreboard and shackles are not included
An indicator is required to change calibration and parameter settings

Part Number

Clear

Capacity	1t, 2t, 3t, 5t, 10t, 20t, 30t, 50t, 100t, 200t
Accuracy Class	OIML III
Enclosure Material OCSD 1t-5t	Aluminum
Enclosure Material OCSD 10t-200t	Alloy Steel
Display Type	LCD with backlight
Display Digits	5 digits
Digit Height	25mm/0.98in
Working Temperature	-20°C to 50°C/-4°F to 122°F
Safe Overload	120% of full scale
Breaking Overload	400% of full scale
Power Supply	3 x AA batteries
Battery Life	50 hours
Unit Switch	kg, t, lb, N, kN

Zero	Yes
Tare	Yes
Peak Hold	Yes
Low battery alarm	Yes
Low battery indication	Yes
2 alarm set-point	Yes
Auto calibration	Yes
3-point linearity correction	Yes
Unit switch: kg/lb/t/N/kN	Yes
Gravity acceleration	Yes
Resolution switch	Yes
Auto-off set	Yes

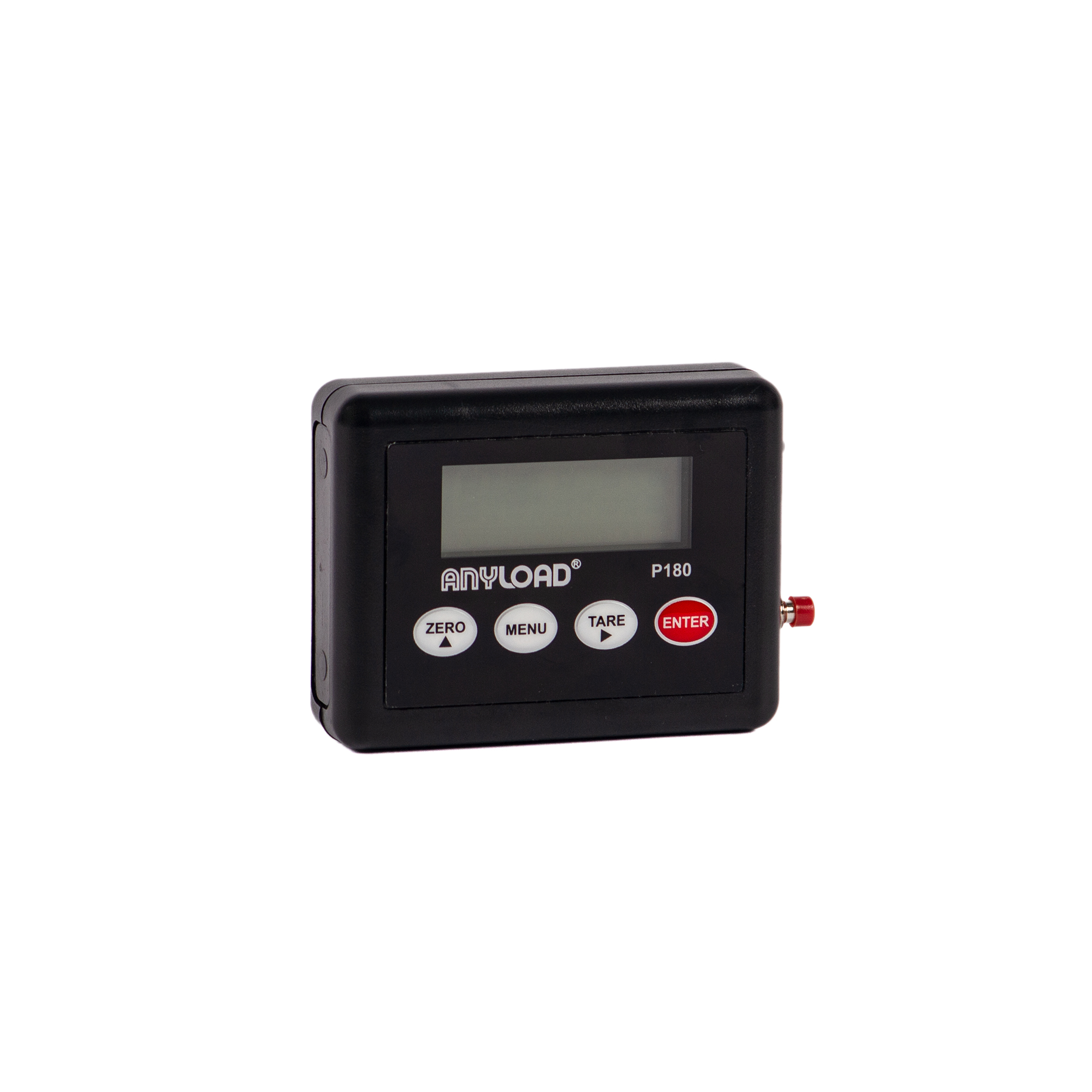

P180 Wireless Display

Palm size wireless indicator

LCD display with backlight

Display indicates battery power status, tare, zero, peak and stable

Equipped with a USB port for easy PC connection and communication

Updating Rate: 12 times per second

2.4 GHz wireless transmission up to 30 meters with 128 available channels

Power Supply: USB connection or lithium battery (included)

Concealed antenna as an integral part of the design

Indicator can only be used with the OCSD Dynamometer

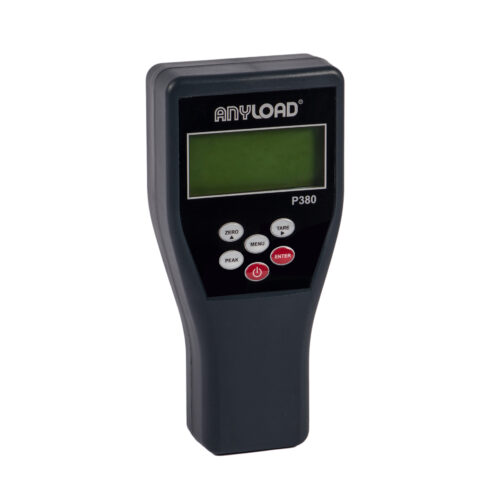

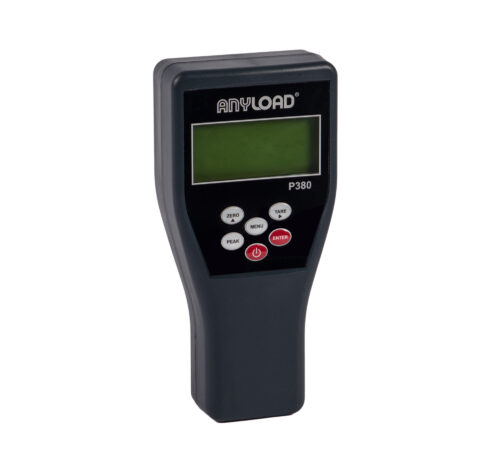

P380 Handheld Wireless Display

Handheld wireless indicator

LCD display with backlight

Display indicates battery power status, tare, zero, peak and stable

Updating Rate: 12 times per second

2.4 GHz wireless transmission up to 30 meters with 128 available channels

Power Supply: 4 x AA alkaline batteries

Battery Life: 50 hours of continuous operation

Concealed antenna as integral part of the design

Indicator can only be used with the OCSD Dynamometer

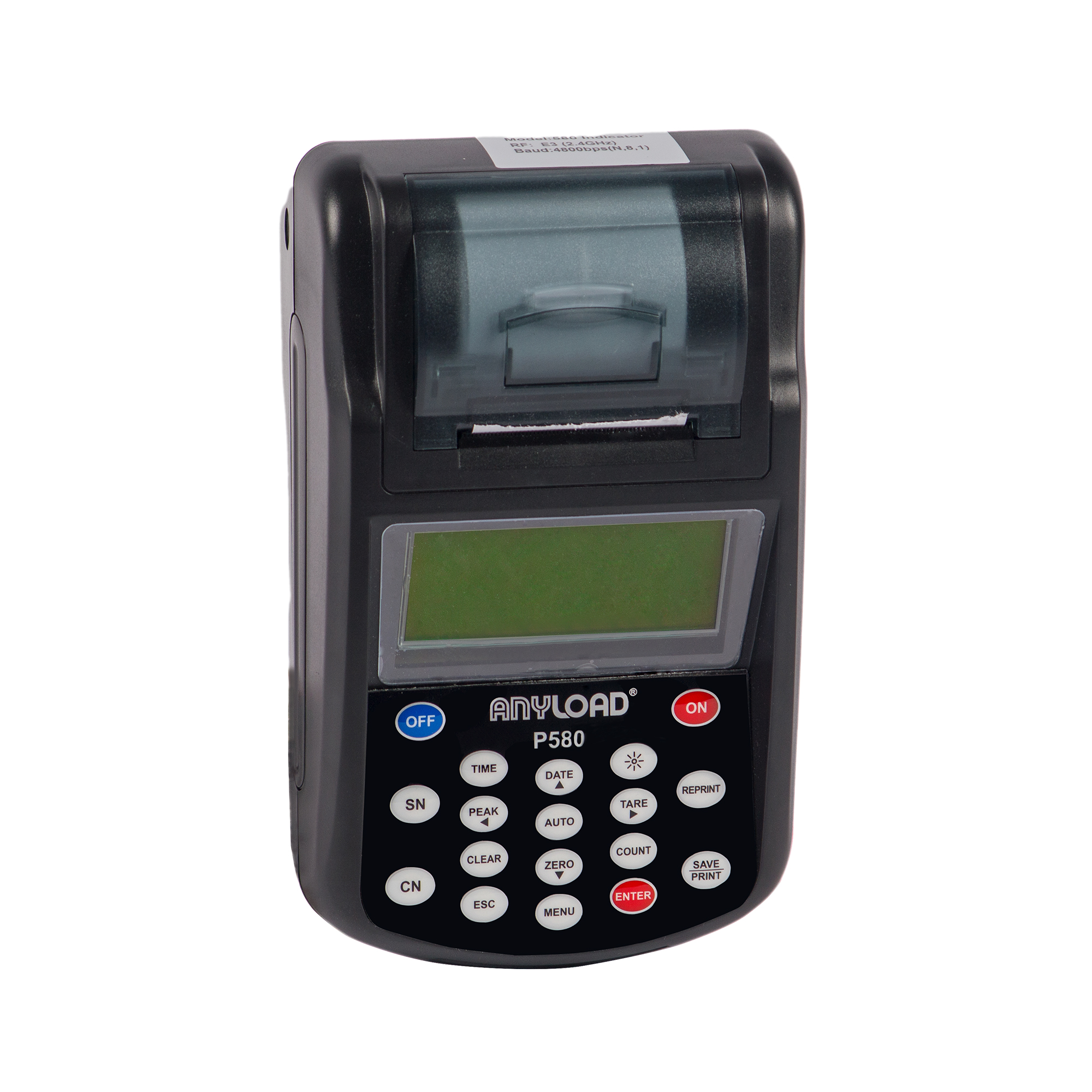

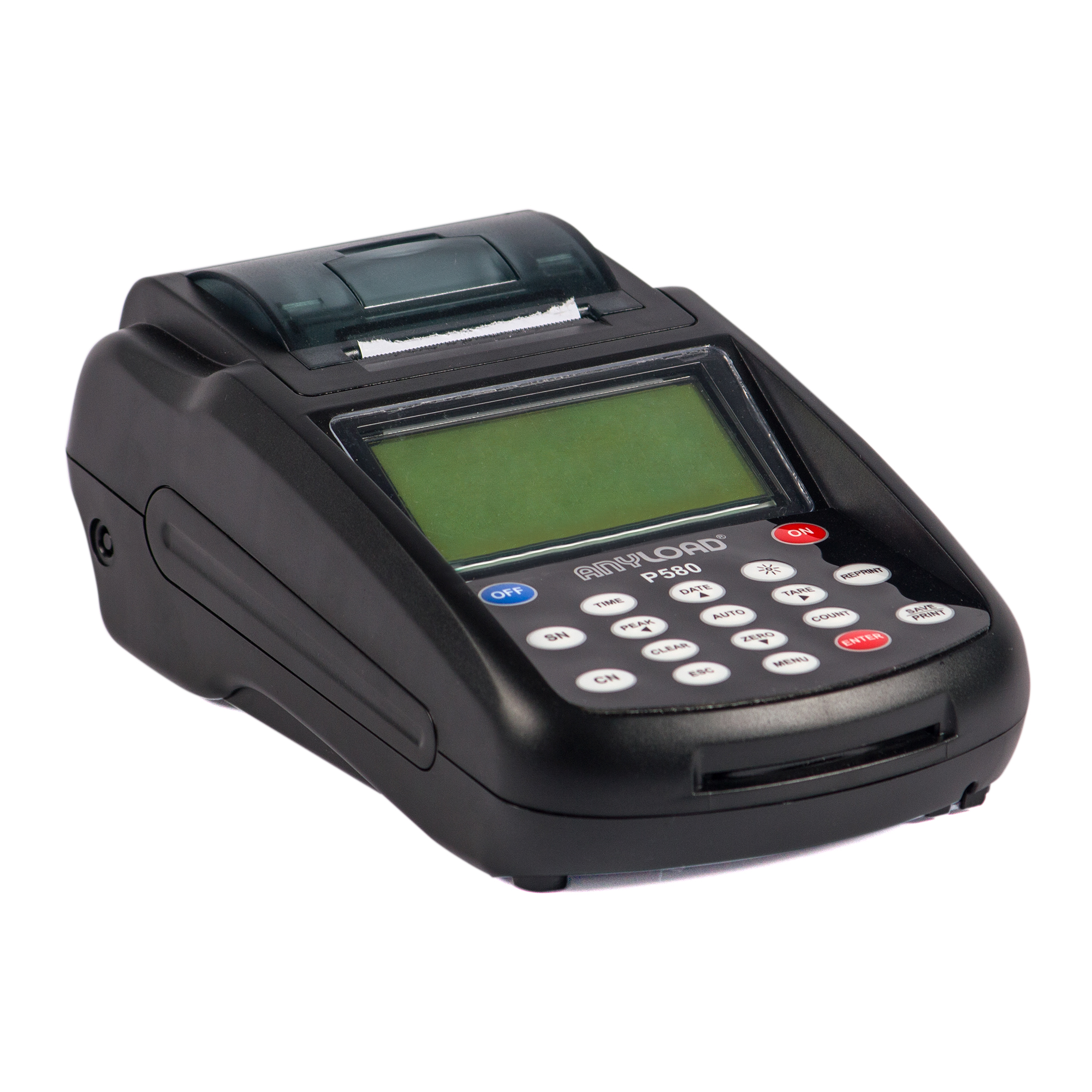

P580 Wireless Display with Printer

Portable size with printer

LCD display with backlight

Display indicates battery power status, tare, zero, peak and stable

Programmable relay settings

Includes both RS-232 serial port and USB port

Updating Rate: 12 times per second

2.4 GHz wireless transmission up to 30 meters with 128 available channels

Power Supply: Rechargeable industrial Ni-H battery

Battery Life: Fully charged can provide 50 hours of normal operation

Fujitsu FTP-680 high speed thermal printer

CPU: ARM based 32 bit MCU

Concealed antenna as integral part of the design

Indicator can only be used with the OCSD Dynamometer

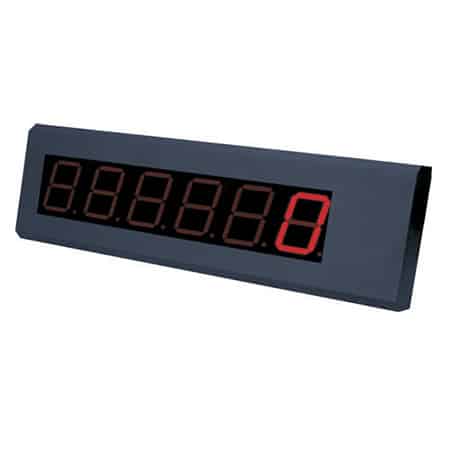

BD3 & BD5 Wireless Remote Display

Enclosure Material: Alloy Steel

Wireless 2.4Ghz

Power Supply: 110VAC, 60Hz

High-lighted digital segment and broad eyesight with special optical filter film

Pre-drilled holes on rear plate for versatile hanging

Display is calibrated for use with the OCSD Dynamometer

Part Number	Corresponding Shackle
OCSD-1t	SBX-3.25t
OCSD-2t	SBX-4.75t
OCSD-3t	SBX-4.75t
OCSD-5t	SBX-6.5t
OCSD-10t	SBX-13.5t
OCSD-20t	SBX-25t
OCSD-30t	SBX-35t
OCSD-50t	SBX-55t
OCSD-100t	SBX-120t
OCSD-200t	SBX-200t (custom)
