Load Cell Capacity | Part No. | Shipping Weight (kg / lb) Approx. |
50lb | MK4-101NHM2-50lb-S | 2.8kg / 6.2lb |
100lb | MK4-101NHM2-100lb-S | 2.8kg / 6.2lb |
200lb | MK4-101NHM2-200lb-S | 2.8kg / 6.2lb |
250lb | MK4-101NHM2-250lb-S | 2.8kg / 6.2lb |
500lb | MK4-101NHM2-500lb-S | 6.8kg / 15.0lb |
750lb | MK4-101NHM2-750lb-S | 6.8kg / 15.0lb |
1Klb | MK4-101NHM2-1Klb-S | 6.8kg / 15.0lb |
1.5Klb | MK4-101NHM2-1Klb-S | 6.8kg / 15.0lb |
2Klb | MK4-101NHM2-2Klb-S | 6.8kg / 15.0lb |
5Klb | MK4-101NHM2-5Klb-S | 14.0kg / 30.9lb |
10Klb | MK4-101NHM2-E-10Klb-S | 35.2kg / 77.6lb |
MK4-101NHM2 Tension Weigh Module Kit
The 101NHM2 Tension Weigh Module Kit is a robust and reliable solution designed for high-accuracy tension weighing applications. The Kit is a complete package with all required components, ensuring ease of installation. Assembling the 101NH S-beam load cell with 101NHM2 mounts, this kit provides exceptional performance in demanding environments, making it ideal for suspended tanks and hoppers, especially in concrete batching plants.
Features:
- Compatible with 101NH S-beam load cell
- Constructed from durable alloy steel for long-lasting use
- Capacities: 50lb to 10,000lb (per module)
- NTEP-certified load cells available from 100lb to 20,000lb for legal-for-trade applications
- OIML-certified load cells from 200kg to 10t for international standards compliance
- CE, RoHS, and Ex certified for a wide range of industrial settings
- Grounding strap included to divert all currents, ensuring the load cell is protected.
- Engineered for precise tension loading applications.

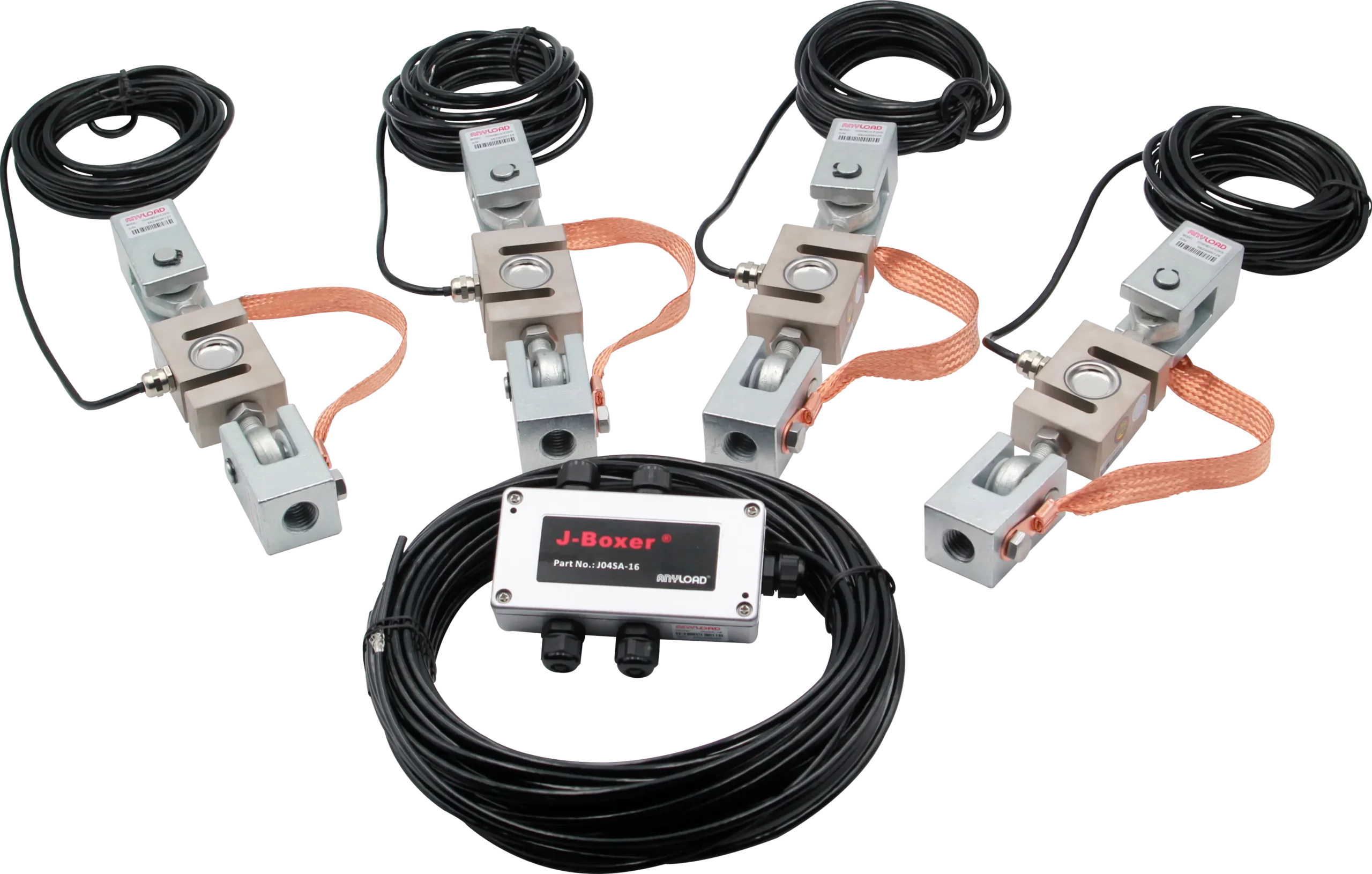

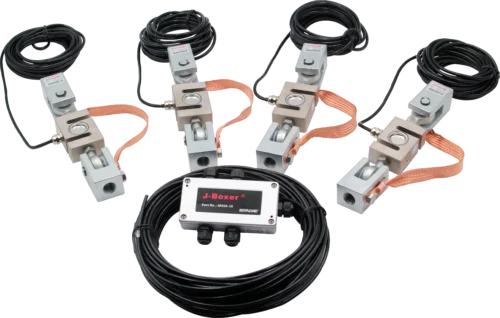

Complete Set Includes:
- (4 pcs) Four 101NH Alloy Steel S-beam load cells
- (4 pcs) Four 101NHM2 Alloy Steel weigh modules
- (1 pcs) One J04SA-16 water-resistant junction box
- (1 roll) 65ft (20m) cable, 4-wire PVC cable with both copper braid & foil shielding (CB4-5.1-20m)
