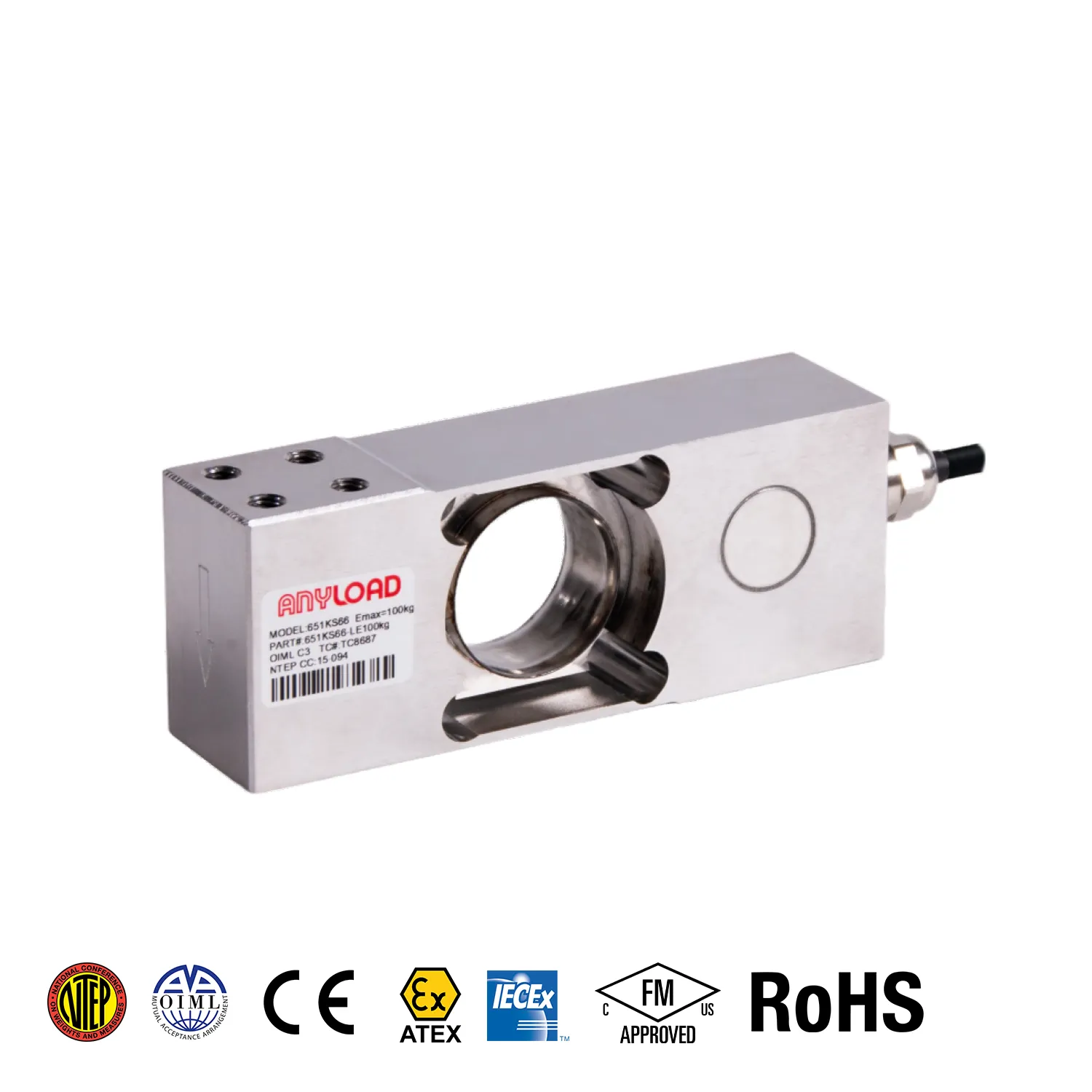

651KS66 Single Point Load Cell
- Material: Stainless steel
- Rated Capacities: LE10kg, LE20kG, LE50Kg, LE100kg, LE200kg
- Full Scale Output: 2mV/V ± 5%
- Safe Overload: 150% of full scale
- Breaking Overload: 300% of full scale
- IP Rating: Welded Seal/IP68/IP69K
- NTEP: 10kg – 50kg: NTEP 1:10 000 Class III, Single Cell; 100kg – 200kg: NTEP 1:5 000 Class III, Single Cell;
- OIML: 10kg – 100kg: OIML MAA C9, Y=18 000; 200kg: OIML MAA C4, Y=26 000
- CE, RoHS and Ex(NEPSI) certified
- ATEX, FM, IECEx available upon request
| Rated Capacities | LE10kg, LE20kG, LE50Kg, LE100kg, LE200kg |
| Reference Max. Platform Size | 610mm x 700mm |
| Full Scale Output | 2mV/V ± 5% |
| Zero Balance | ± 0.02mV/V |
| Non-linearity | < ± 0.03% |
| Repeatability | < ± 0.02% |
| Hysteresis Error | < ± 0.03% |
| Creep in 30 minutes | < ± 0.02% |
| Input Resistance | 1100Ω ± 50Ω |
| Output Resistance | 960Ω ± 50Ω |
| Recommended Excitation | 10V (15V Maximum) |
| Insulation Resistance | > 2GΩ (50V DC) |
| Compensated Temperature Range | –10°C to 50°C/14°F to 122°F |
| Safe Overload | 150% of full scale |
| Breaking Overload | 300% of full scale |
| Seal Type | Welded seal |
| IP Rating | IP68/IP69K |
Note: You may need a software that can open/view STEP files.
| Manufacturer | Model |
| Flintec | PC6 |
