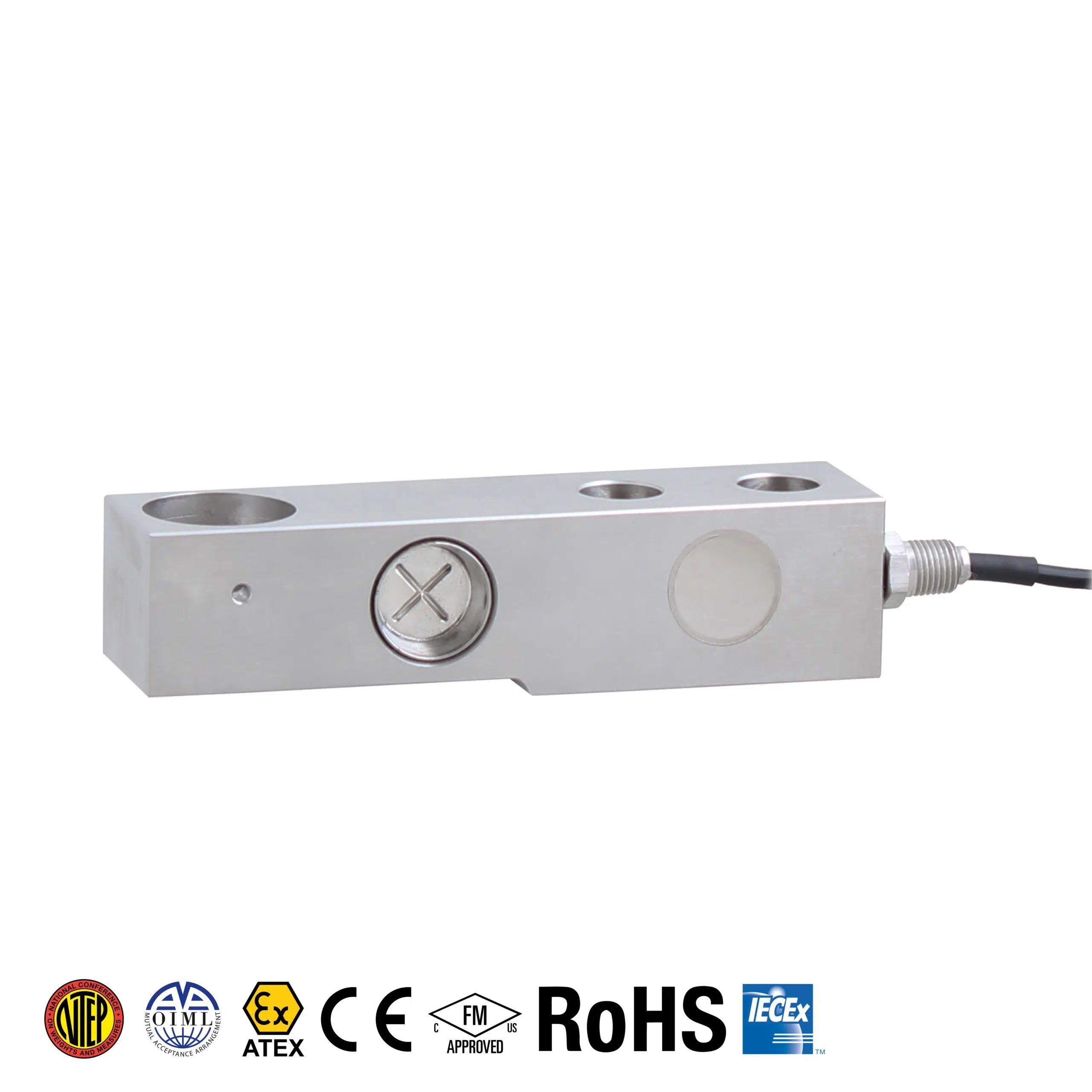

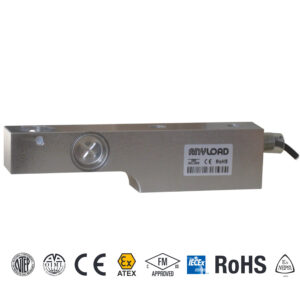

563YSMT Single Ended Beam Load Cell
Description:
The compact, low-profile design of this cost-effective single-ended beam load cell makes it suitable for lower and medium capacity applications, such as platform scales, hopper scales, etc. The IP68-class water-resistant stainless steel welded sealed construction ensures excellent performance under rugged conditions. The 563YSMT is interchangeable with Mettler Toledo 0744*, Mettler Toledo 0745, Rice Lake RL30745, and more (see: INTERCHANGEABLE tab).
Features:
- Material: Stainless steel
- Rated Capacities: 250lb, 500lb, 1.25Klb, 2.5Klb, 4Klb, 5Klb, 10Klb
- Full Scale Output: 2mV/V ± 0.25%
- Safe Overload: 150%
- Breaking Overload: 300%
- IP Rating: IP68
- NTEP: 250lb-2.5Klb: NTEP 1:5000 Class III, Single Cell; NTEP 1:9500 Class III, Multiple Cell
4Klb-10Klb: NTEP 1:6000 Class III, Single Cell; NTEP 1:10000 Class III, Multiple Cell - OIML: 1.25Klb-5Klb: OIML MAA C5, Y=26000;
10Klb: OIML MAA C6, Y=8500 - CE, RoHS and Ex(NEPSI) certified
- ATEX, FM, IECEx available upon request
- Pin to be ordered separately
| Rated Capacities | 250lb, 500lb, 1.25Klb, 2.5Klb, 4Klb, 5Klb, 10Klb |
| Full Scale Output | 2mV/V ± 0.25% |
| Zero Balance | ± 0.02mV/V |
| Non-linearity | < ± 0.023% |
| Repeatability | < ± 0.017% |
| Hysteresis Error | < ± 0.023% |
| Creep in 30 minutes | < ± 0.023% |
| Input Resistance | 350Ω ± 7Ω |
| Output Resistance | 350Ω ± 3Ω |
| Recommended Excitation | 10V (15V Maximum) |
| Insulation Resistance | > 2GΩ (50V DC) |
| Temperature Effect on Sensitivity | < ±0.0012% of Cn/k |
| Temperature Effect on Zero Balance | < ± 0.0040% of Cn/k |
| Compensated Temperature Range | –10°C to 50°C/14°F to 122°F |
| Service Temperature Range | -30°C to 70°C/-20°F to 160°F |
| Storage Temperature Range | -50°C to 85°C/-58°F to 185°F |
| Safe Overload | 150% of full scale |
| Breaking Overload | 300% of full scale |
| Seal Type | Welded seal |
| IP Rating | IP68 |
Note: You may need a software that can open/view STEP files.
| Manufacturer | Model |
| Coti Global | CG-745 |
| HBM | THC |
| Mettler-Toledo | MT0744* |
| Mettler-Toledo | MT0745 |
| Rice Lake | RL30745 |
* MT0744 is environmentally sealed and interchangeable with ANYLOAD 563YSMT-250lb
