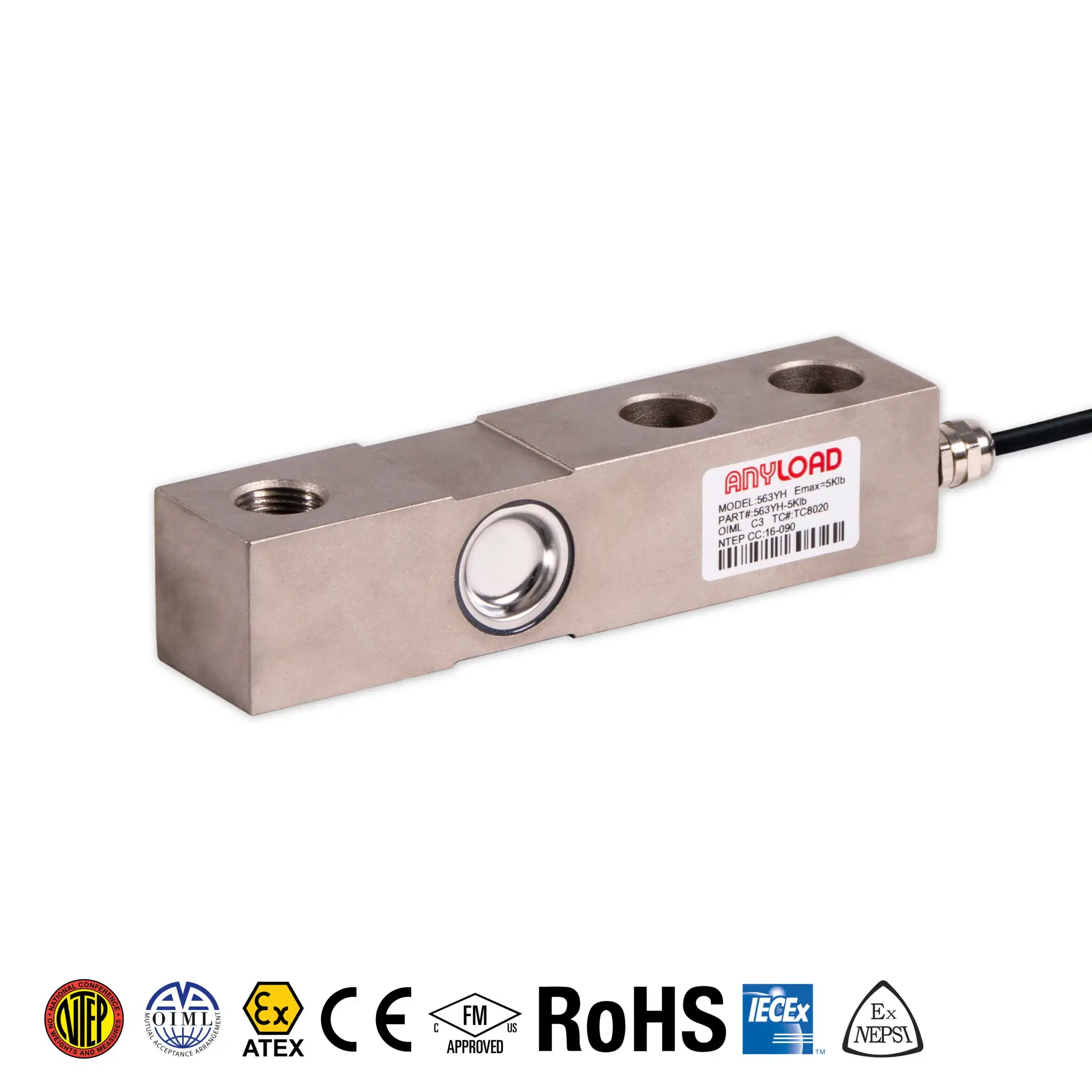

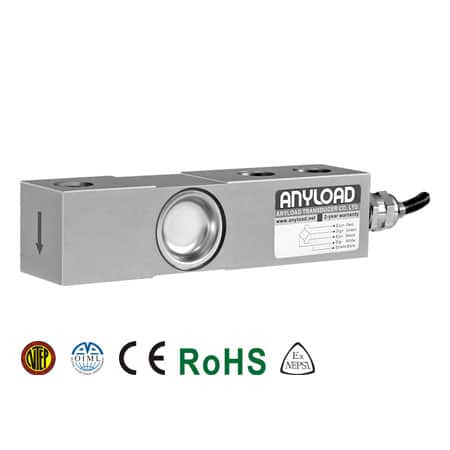

563YH Single Ended Beam Load Cell
The 563YH is an industry-standard and time-tested single-ended beam that is interchangeable with similar load cells on the market. The compact and low-profile design is suited for a variety of medium-capacity applications such as hopper weighing, platform scales, process weighing, and more. This cost-effective product is also frequently used in OEM applications.

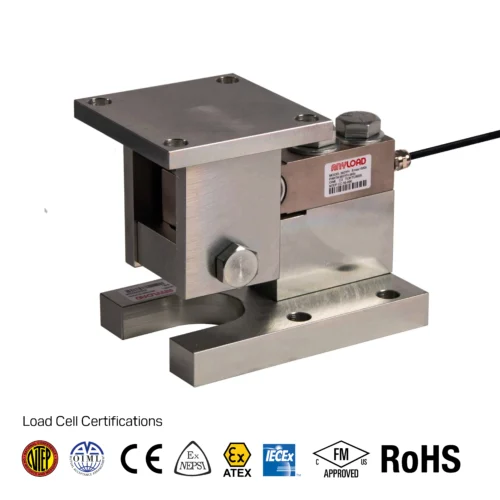

Compression weigh modules (563YHM2 / 563YHM4-02 / 563YHM5) are available to facilitate installation for ideal loading, with easy-to-install mounting options, allowance for thermal expansion, and protection from irregular loading.
Features:
- Material: Alloy steel
- Rated Capacities: 100lb, 250lb, 500lb, 1Klb, 1.5Klb, 2Klb, 2.5Klb, LE2.5Klb, 4Klb, SE5Klb, 5Klb, 10Klb, 15Klb, 20Klb, 100kg, 200kg, 300kg, 500kg, 750kg, 1t, 1.5t, 2t, 2.5t, 3t, 5t, 10t, 20t
- Full Scale Output: 3mV/V± 0.25%
- Safe Overload: 150%
- Breaking Overload: 300%
- IP Rating: IP67
- NTEP 1:6 000 Class III, Multiple Cell certified from 1Klb-10Klb
- NTEP 1:3 500 Class III, Single Cell certified from 1Klb-10Klb
- OIML MAA C4, Y=15 000 certified from 500kg-2.5t
- OIML C3 certified from 3t-10t
- CE, RoHS and Ex(NEPSI) certified
- ATEX, FM, IECEx available upon request
| Rated Capacities | 100lb, 250lb, 500lb, 1Klb, 1.5Klb, 2Klb, 2.5Klb, LE2.5Klb, 4Klb, SE5Klb, 5Klb, 10Klb, 15Klb, 20Klb, 100kg, 200kg, 300kg, 500kg, 750kg, 1t, 1.5t, 2t, 2.5t, 3t, 5t, 10t, 20t |
| Full Scale Output | 3mV/V± 0.25% |
| Zero Balance | ± 0.02mV/V |
| Non-linearity | < ± 0.017% |
| Repeatability | < ± 0.017% |
| Hysteresis Error | < ± 0.017% |
| Creep in 30 minutes | < ± 0.023% |
| Input Resistance | 400Ω ± 20Ω for kg or 350Ω ± 7Ω for lb |
| Output Resistance | 350Ω ± 3Ω |
| Recommended Excitation | 10V (15V Maximum) |
| Insulation Resistance | > 2GΩ (50V DC) |
| Temperature Effect on Sensitivity | < ±0.0012% of Cn/k |
| Temperature Effect on Zero Balance | < ± 0.0040% of Cn/k |
| Compensated Temperature Range | –10°C to 50°C/14°F to 122°F |
| Service Temperature Range | –30°C to 70°C/-20°F to 160°F |
| Storage Temperature Range | -50°C to 85°C/-58°F to 185°F |
| Safe Overload | 150% of full scale |
| Breaking Overload | 300% of full scale |
| Seal Type | Environmentally sealed |
| IP Rating | IP67 |
Note: You may need a software that can open/view STEP files.
Download Approval
CE Certificate of Conformity
Download Approval
RoHS Certificate of Conformity
Download Approval
NTEP Certificate of Conformance
Download Approval
OIML Certificate of Conformity
Download Approval
Explosion Protection Certificate of Conformity
Download Approval
National Measurement Institute (NMI) of Australia
| Manufacturer | Model |
| CAS | BSA* |
| Rice Lake | RL30000* |
| Rice Lake | RL35023* |
| Coti Global | CG-23* |
| Vishay Celtron | SQB* |
| Vishay Revere Transducers | 5123* |
| Vishay Sensortronics | 65023* |
| Vishay Tedea-Huntleigh | 3411* |
* The dimensions of C2 of interchangeable models are different: 0.53 inch for 100lb to SE5Klb, 0.78 inch for 5Klb and 10Klb, 1.03 inch for 15Klb and 20Klb
