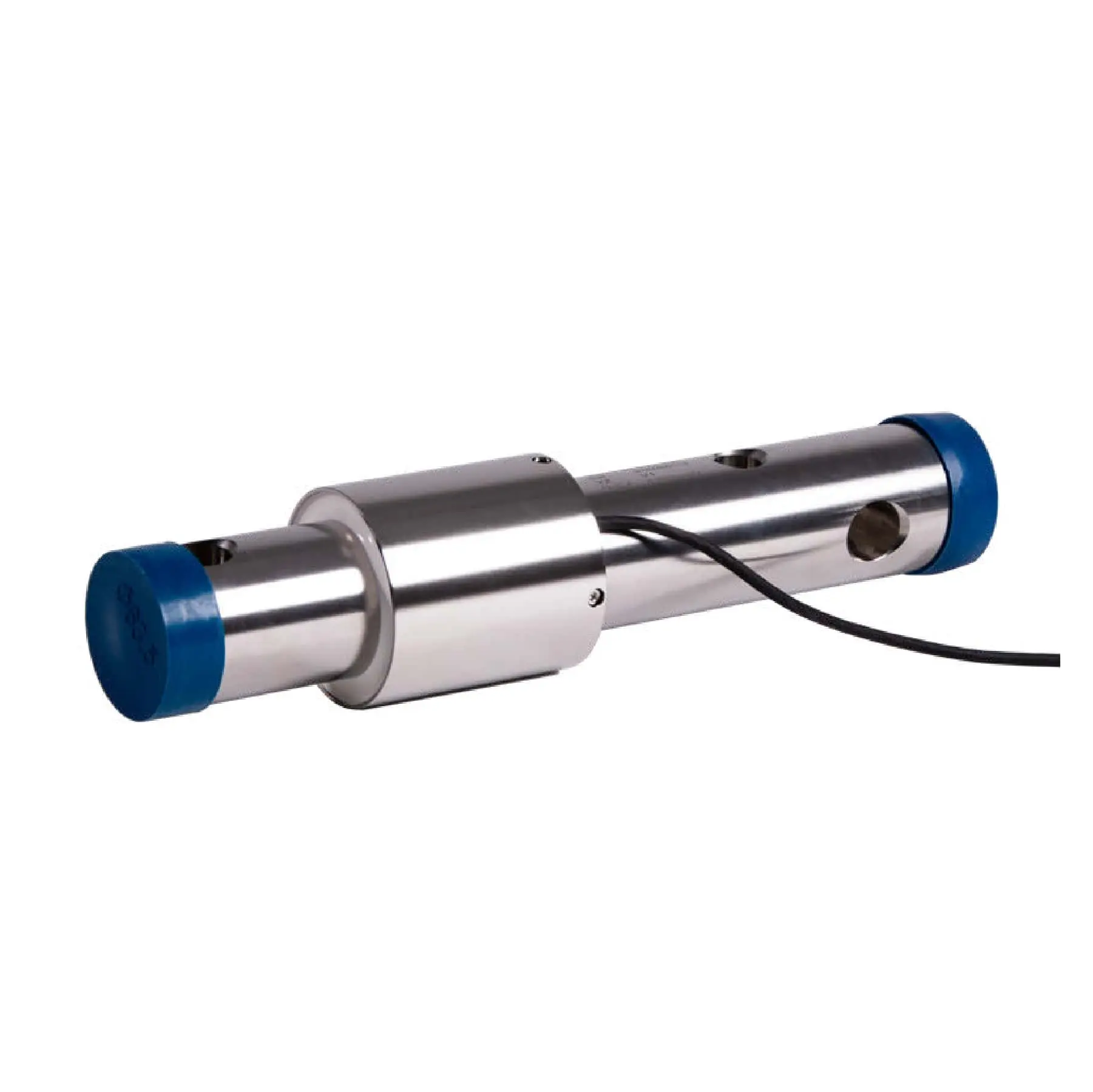

563WS-23B Single Ended Beam Load Cell
- Material: Stainless steel
- Rated Capacities: 18Klb
- Full Scale Output: 0.9 mV/V ± 1%
- Breaking Overload: 300%
- IP Rating: Environmentally Sealed / IP67

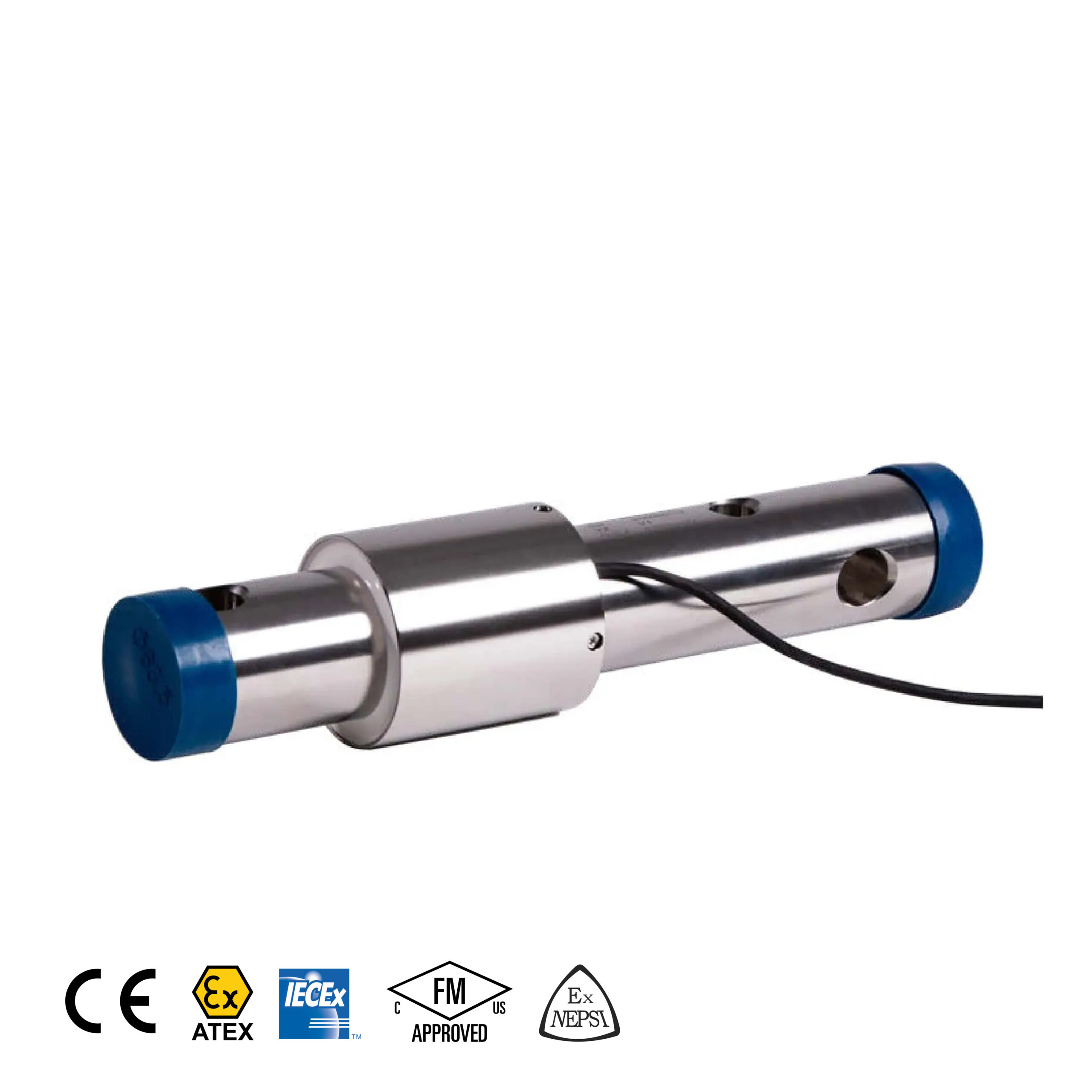

- CE, RoHS and Ex(NEPSI) certified
- ATEX, FM, IECEx available upon request
| Rated Capacities | 6Klb |
| Full Scale Output | 0.6347 ± 0.003mV/V |
| Zero Balance | ±0.02 mV/V |
| Non-linearity | <±0.03% |
| Repeatability | <±0.03% |
| Hysteresis Error | <±0.03% |
| Creep in 30 min | <±0.023% |
| Input Resistance | 375Ω ± 25Ω |
| Output Resistance | 350Ω ± 3Ω |
| Element Material | Alloy Steel, Nickel Plated and Electrophoretic Paint |
| Recommended Excitation | 10V (15V Maximum) |
| Insulation Resistance | >2 [50V DC] GΩ |
| Compensated Temperature Range | -10°C to 50°C/14°F to 122°F |
| Safe Overload | 150% of full scale |
| Breaking Overload | 300% of full scale |
| Seal Type / IP Rating | Environmentally Sealed / IP67 |
| Cable Color Code | Exc+ Red(Pin 1); Exc-Black(Pin 4); Sig+ White(Pin 3); Sig- Green(Pin 2); Shield Bare(Pin 5) |
| ANYLOAD Part Number | Avery Weigh-Tronix | Coti-Global | Rice Lake | Rice Lake |
| 563WS-1.25Klb-YZ | Weigh Bar | CG-WB-SS-1.25Klb | RL75000 SS-1.25Klb | RL32011WB-L-1.25Klb |
| 563WS-2.5Klb-YZ | Weigh Bar | CG-WB-SS-2.5Klb | RL75000 SS-2.5Klb | RL32011WB-L-2.5Klb |
| 563WS-5Klb-YZ | Weigh Bar | CG-WB-SS-5Klb | RL75000 SS-5Klb | RL32011WB-L-5Klb |
| 563WS-10Klb-YZ | Weigh Bar | CG-WB-SS-10Klb | RL32011WB-L-10Klb | |
| 563WS-25Klb-YZ-CG | Weigh Bar | |||
| 563WS-25Klb-YZ-CG | Weigh Bar | CG-WB-SS-25Klb | ||
| 563WS30-37.5Klb-YZ-CG | Weigh Bar | CG-WB-SS-37.5Klb | ||
| 563WS30-37.5Klb-YZ | Weigh Bar | |||
| 563WS30-50Klb-YZ | Weigh Bar | CG-WB-SS-50Klb | ||
| 563WS30-E-50Klb-YZ-RP | 27173 | CG-WB-SS-50Klb-27173 | ||
| 563WS30-H-50Klb-YZ-RP | 50104 | CG-WB-SS-50Klb-50104 | ||
| 563WS30-F-60Klb-YZ | 55829 | CG-WB-SS-60Klb-55829 | ||
| 563WS30-F-75Klb-YZ | AWT27-500080 | CG-WB-SS-76Klb-EZPOST |
