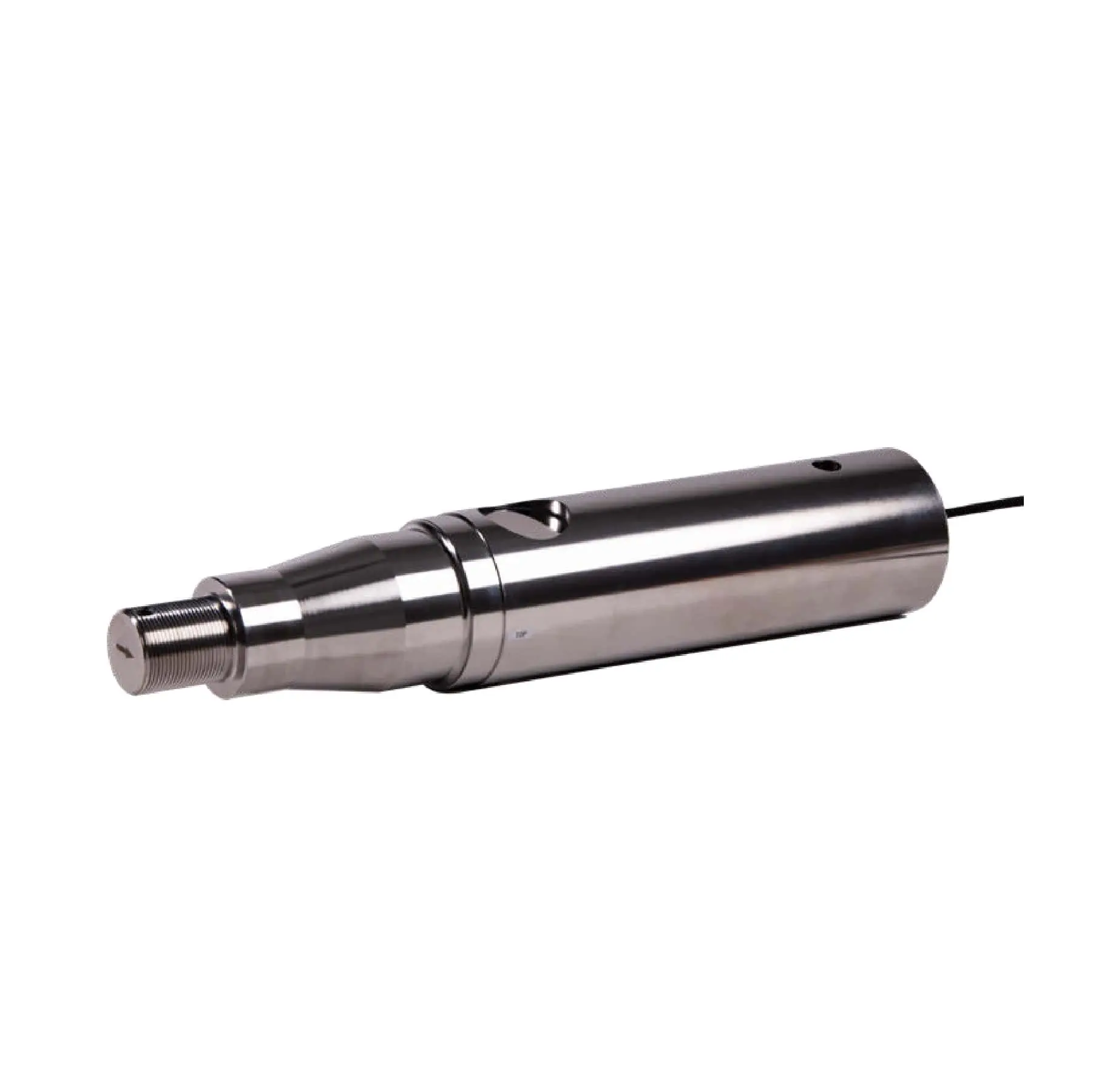

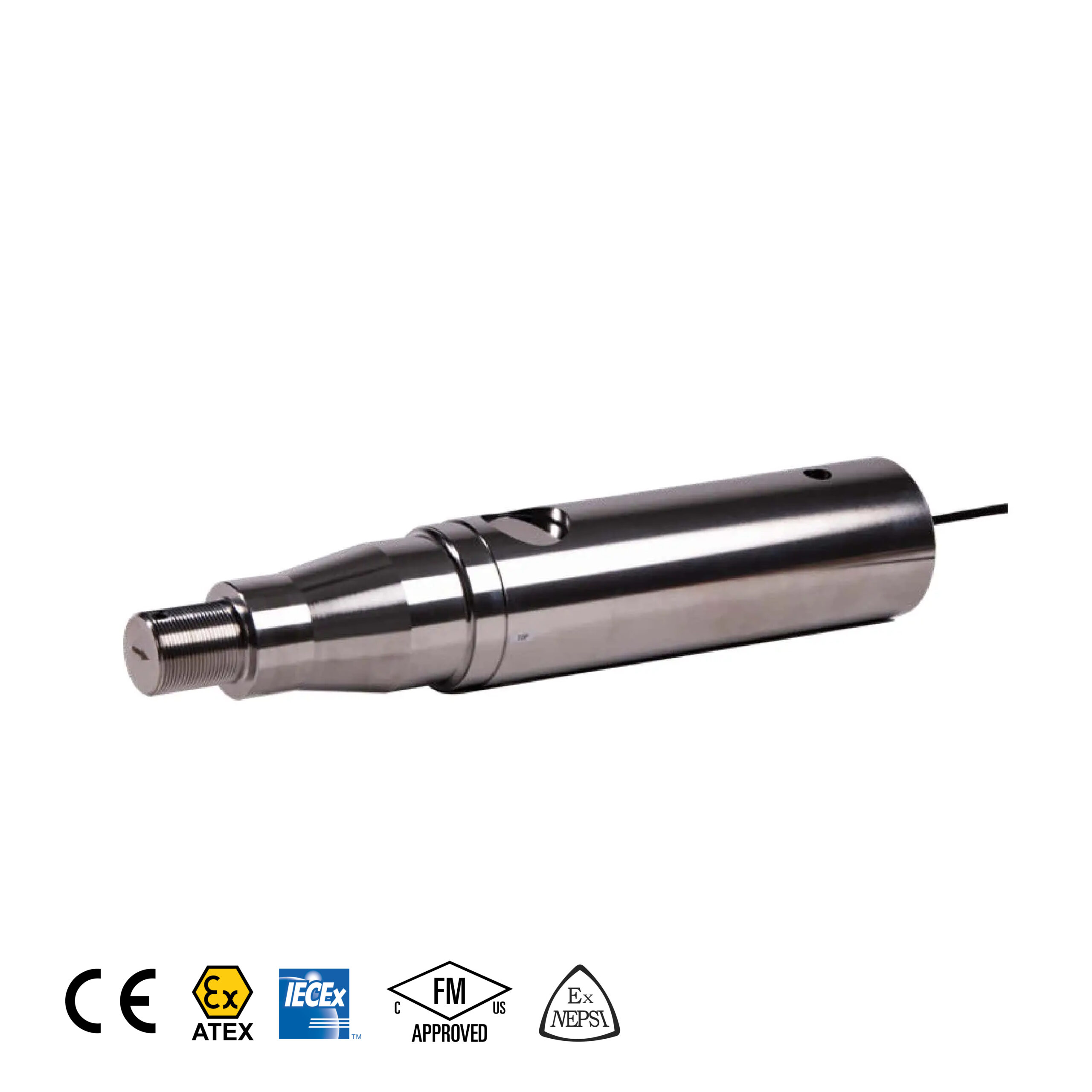

563WS-23A Single Ended Beam Load Cell
- Material: Stainless steel
- Rated Capacities: 30Klb
- Full Scale Output: 1.5 mV/V ± 1%
- Breaking Overload: 300%
- IP Rating: Environmentally Sealed / IP67
- CE, RoHS and Ex(NEPSI) certified
- ATEX, FM, IECEx available upon request
| Rated Capacities | 30Klb |
| Full Scale Output | 1.5mV/V ± 1% |
| Zero Balance | ±0.02 mV/V |
| Non-linearity | <±0.05% |
| Repeatability | <±0.05% |
| Hysteresis Error | <±0.05% |
| Creep in 30 min | <±0.05% |
| Input Resistance | 350Ω ± 7Ω |
| Output Resistance | 350Ω ± 3Ω |
| Element Material | 2Cr13 Stainless Steel |
| Recommended Excitation | 10V (15V Maximum) |
| Insulation Resistance | >2 [50V DC] GΩ |
| Operation Temperature Range | -20°C to 50°C/-4°F to 122°F |
| Safe Overload | 150% of full scale |
| Breaking Overload | 300% of full scale |
| Seal Type / IP Rating | Environmentally Sealed / IP67 |
| Cable Color Code | Exc+ Red(Pin 1); Exc-Black(Pin 4); Sig+ White(Pin 3); Sig- Green(Pin 2); Shield Bare(Pin 5) |
