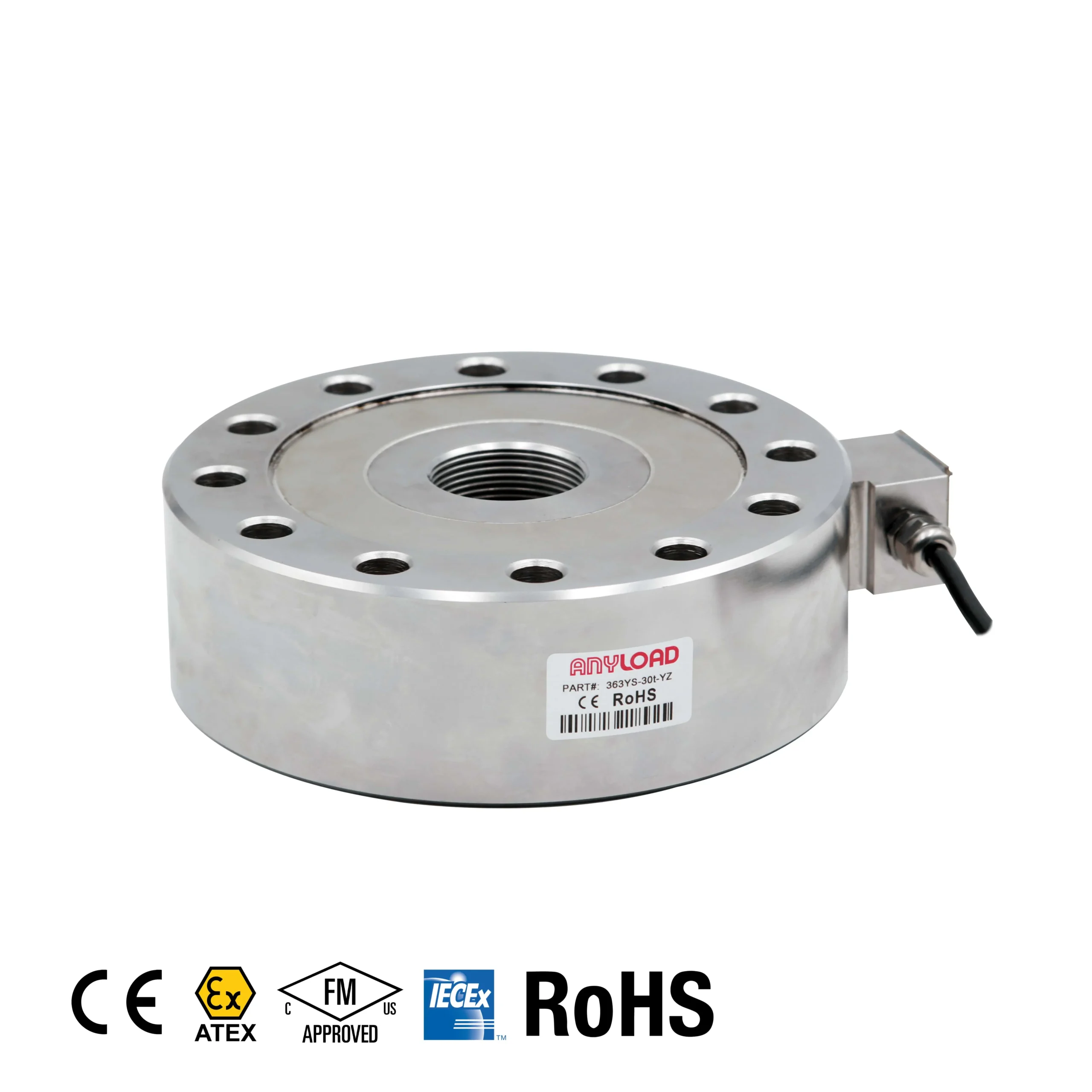

363YS Compression and Tension Load Cell
Description:
The 363YS tension and/or compression load cell is a universal weighing and force measurement solution for a wide variety of high-capacity applications. The IP67 stainless steel construction of the low-profile disk/canister load cell with a high safety factor is designed to perform under challenging conditions.
Features:
- Material: Stainless steel
- Rated Capacities: 1t, 2t, 3t, 5t, 10t, 20t, 30t, 50t, 100t, 150t, 200t, 300t
- Full Scale Output: 2.0mV/V ± 1%
- Safe Overload: 150% of full scale
- Breaking Overload: 300% of full scale
- IP Rating: IP67
- CE and RoHS certified
| SPECIFICATIONS | 363YS-(1-5)t | 363YS-(10-300)t |
| Rated Capacities | 1t, 2t, 3t, 5t | 10t, 20t, 30t, 50t, 100t, 150t, 200t, 300t |
| Full Scale Output | 2mV/V ± 1% |
| Zero Balance | ± 0.02mV/V |
| Non-linearity | < ± 0.050% | < ± 0.30% |
| Repeatability | < ± 0.030% | < ± 0.20% |
| Hysteresis Error | < ± 0.050% | < ± 0.30% |
| Creep in 30 minutes | < ± 0.050% | < ± 0.10% |
| Input Resistance | 770Ω ± 30Ω |
| Output Resistance | 700Ω ± 5Ω |
| Rated Excitation | 10V (15V Maximum) |
| Insulation Resistance | > 2GΩ (50V DC) |
| Temperature Effect on Sensitivity | < ±0.0023% of Cn/k |
| Temperature Effect on Zero Balance | < ± 0.0120% of Cn/k |
| Compensated Temperature Range | –10°C to 50°C/14°F to 122°F |
| Service Temperature Range | -30°C to 70°C/-20°F to 160°F |
| Storage Temperature Range | -50°C to 85°C/-58°F to 185°F |
| Safe Overload | 150% of full scale |
| Breaking Overload | 300% of full scale |
| Seal Type | Welded seal |
| IP Rating | IP67 |
