| Rated Capacities | 20in-oz, 50in-oz, 12in-lb, 50in-lb, 100in-lb, 0.14Nm, 0.35Nm, 1.5Nm, 5.6Nm, 11.3Nm |
| Full Scale Output | 2.0mV/V ± 20% |
| Zero Balance | < ± 0.04mV/V |
| Non-linearity | < ± 0.2% |
| Repeatability | < ± 0.05% |
| Hysteresis Error | < ± 0.2% |
| Creep in 30 minutes | < ± 0.2% |
| Input Resistance | 1000Ω ±50Ω |
| Output Resistance | 1000Ω ± 5Ω |
| Recommended Excitation | 10V |
| Insulation Resistance | >5 [50V DC] GΩ |
| Nominal Temperature Range | –10°C to 40°C/-14°F to 104°F |
| Safe Overload | 150% of full scale |
| Seal Type | Environmentally Sealed |
| IP Rating | IP65 |

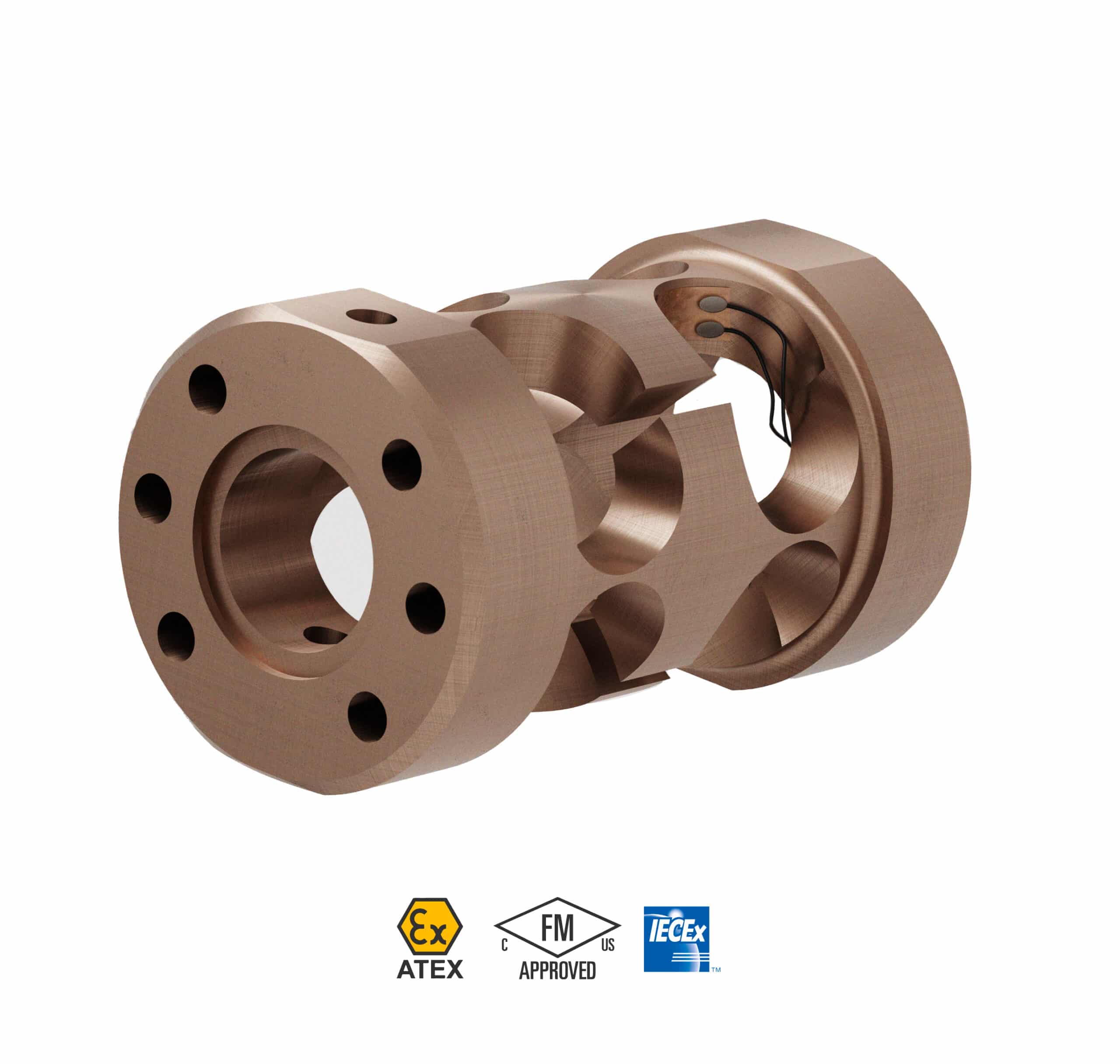

112BA Torque Sensor
Description:
The 112BA Torque Sensor is a precision-manufactured IP65 force measurement solution that is compact and well suited to portable, hand-held applications, including torque gauges.
Anyload is committed to equipping companies for growth in the force measurement industry, click here to see more force measurement products.
Features:
- Material: Aluminum, Clear Anodized
- Rated Capacities: 20in-oz, 50in-oz, 12in-lb, 50in-lb, 100in-lb, 0.14Nm, 0.35Nm, 1.5Nm, 5.6Nm, 11.3Nm
- Full Scale Output: 2.0mV/V ± 20%
- Safe Overload: 150% of full scale
- Seal Type/IP Rating: Environmentally Sealed/IP65
