| Rated Capacities | 50kg, 75kg,100kg, 150kg, 200kg, 250kg, 300kg, 500kg, 635kg, 660kg |
| Reference Max. Platform Size | 610mm x 700mm |
| Full Scale Output | 2mV/V ± 10% |
| Zero Balance | ± 0.02mV/V |
| Non-linearity | < ± 0.017% |
| Repeatability | < ± 0.017% |
| Hysteresis Error | < ± 0.017% |
| Creep in 30 minutes | < ± 0.017% |
| Input Resistance | 415Ω ± 15Ω |
| Output Resistance | 350Ω ± 3Ω |
| Recommended Excitation | 10V (15V Maximum) |
| Insulation Resistance | > 2GΩ (50V DC) |
| Temperature Effect on Sensitivity | < ±0.0012% of Cn/k |
| Temperature Effect on Zero Balance | < ± 0.0023% of Cn/k |
| Nominal Temperature Range | –10°C to 40°C/14°F to 104°F |
| Service Temperature Range | –18°C to 65°C/0°F to 149°F |
| Storage Temperature Range | -50°C to 85°C/-58°F to 185°F |
| Safe Overload | 150% of full scale |
| Breaking Overload | 300% of full scale |
| Seal Type | Environmentally sealed |
| IP Rating | IP66 |

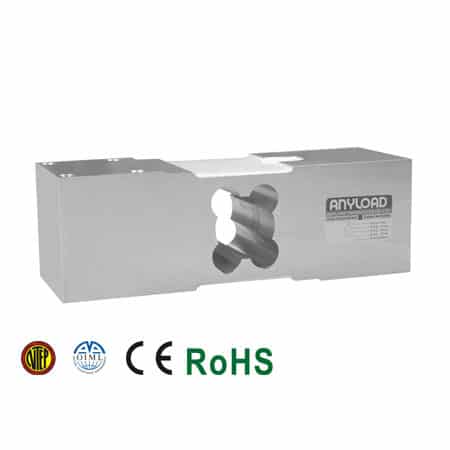

108MAUN Single Point Load Cell
Description:
The 108MAUN is an OIML C3 and NTEP approved lower capacity single point load cell is an easy-to-install and cost-effective weighing solution with good off-center loading compensation. This versatile model is interchangeable with HMB PW16, Rice Lake RL1260, and Vishay Tedea-Huntleigh 1260. Common applications include retail scales, counting scales, and more.
Features:
- Material: Aluminum, Clear Anodized
- Thread: Imperial
- Rated Capacities: 50kg, 75kg,100kg, 150kg, 200kg, 250kg, 300kg, 500kg, 635kg, 660kg
- Full Scale Output: 2mV/V ± 10%
- Safe Overload: 150%
- Breaking Overload: 300%
- IP Rating: IP66
- NTEP 1:4000 Class III, Single Cell certified from 200kg-2t
- 50 kg up to 500 kg: Certified up to OIML MAA C5, Y=12300
- 500 kg up to & including 660kg: Certified up to OIML MAA C4, Y=4000
- CE and RoHS certified
Note: You may need a software that can open/view STEP files.
| Manufacturer | Model |
| Coti Global | CG-50-1 |
| HBM | PW16 |
| Rice Lake | RL1260 |
| Vishay Tedea-Huntleigh | 1260 |
