106CS20 Canister Load Cell
Description:

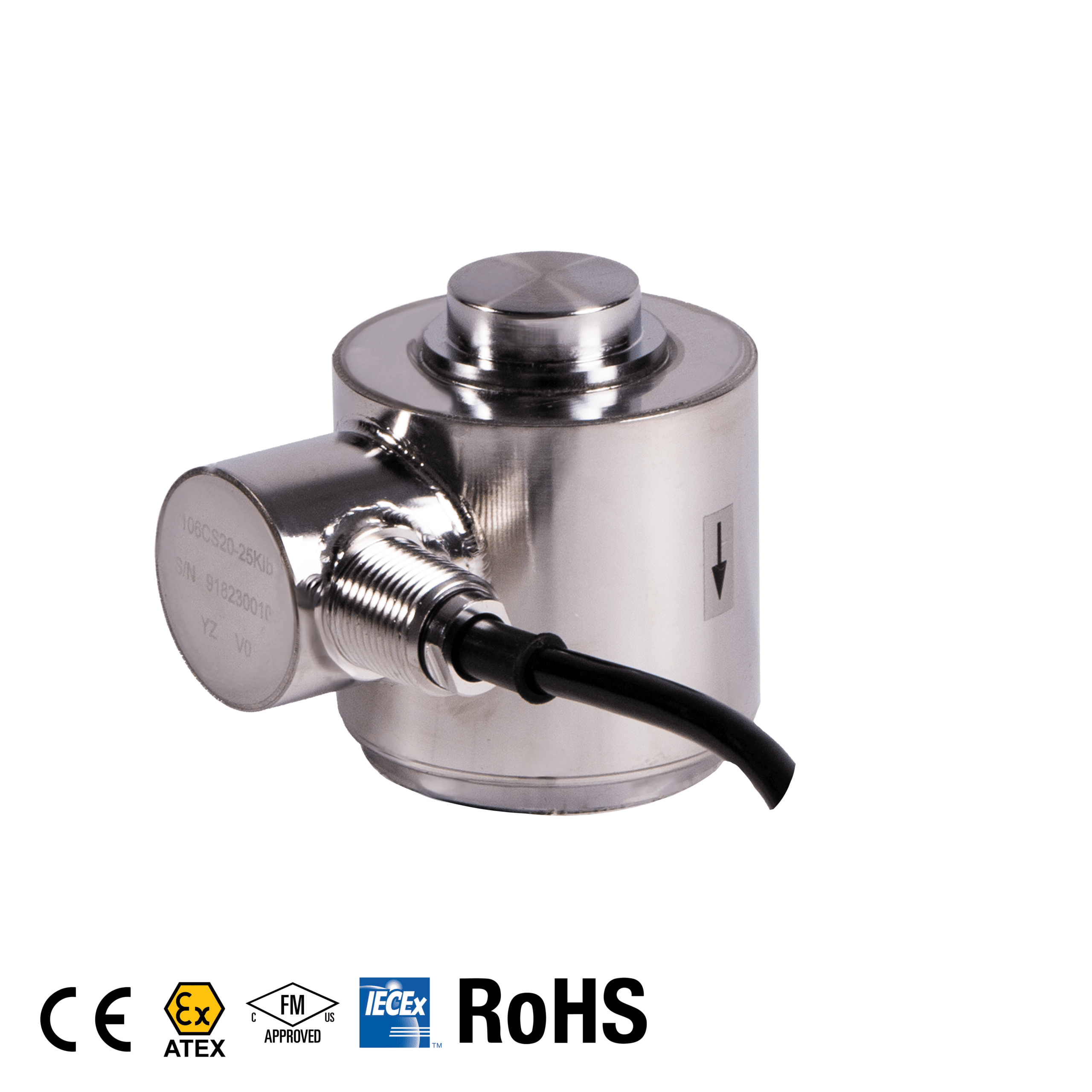

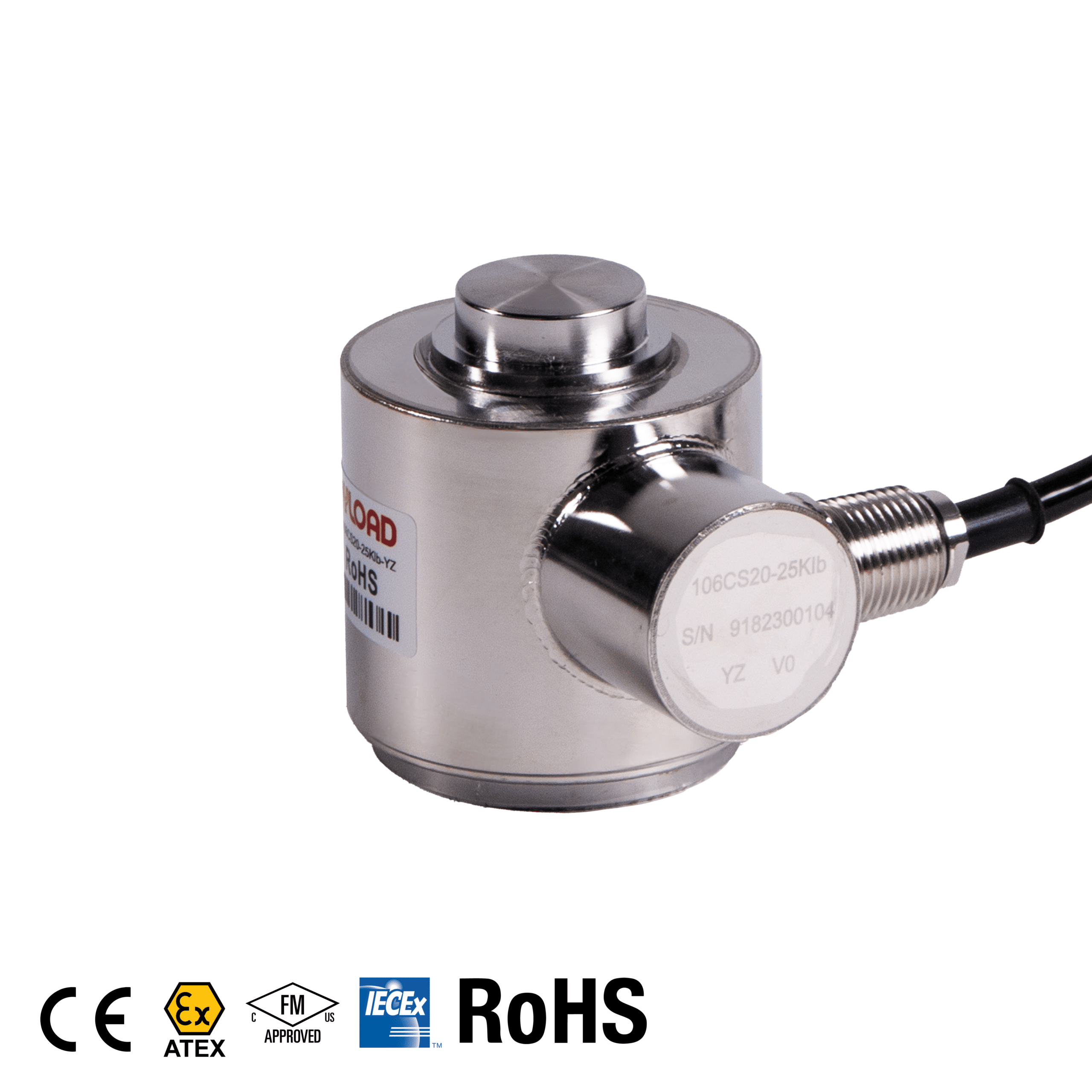

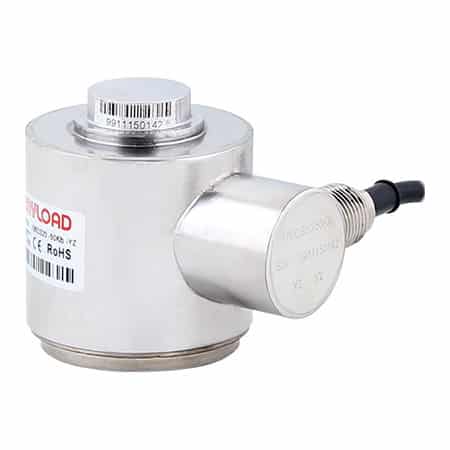

High capacity compression canister load cell with stainless steel IP68 waterproof construction capable of performing even under extreme conditions. Common applications include railroad and truck scales. The 106CS20 is interchangeable with Rice Lake RLCSP1 and Revere 692B and more (see: INTERCHANBEAGLE tab).
Features:
- Material: Stainless steel
- Rated Capacities: 10Klb, 25Klb, 50Klb, 100Klb, 200Klb, 10t, 15t, 25t, 40t, 50t, 100t
- Full Scale Output: 2mV/V ยฑ 0.25%
- Safe Overload: 150%
- Breaking Overload: 300%
- IP Rating: IP68
- CE and RoHS certified
- ATEX, FM, IECEx available upon request
| Rated Capacity | 10Klb, 25Klb, 50Klb, 100Klb, 200Klb, 10t, 15t, 25t, 40t, 50t, 100t |
| Full Scale Output | 2mV/V ยฑ 0.25% |
| Zero Balance | ยฑ 0.02mV/V |
| Non-linearity | < ยฑ 0.023% |
| Repeatability | < ยฑ 0.030% |
| Hysteresis Error | < ยฑ 0.030% |
| Creep in 30 minutes | < ยฑ 0.030% |
| Input Resistance | 450ฮฉ ยฑ 4.5ฮฉ |
| Output Resistance | 480ฮฉ ยฑ 4.5ฮฉ |
| Recommended Excitation | 10V (15V Maximum) |
| Insulation Resistance | > 2Gฮฉ (50V DC) |
| Temperature Effect on Sensitivity | < ยฑ0.0012% of Cn/k |
| Temperature Effect on Zero Balance | < ยฑ 0.0040% of Cn/k |
| Compensated Temperature Range | –10ยฐC to 50ยฐC/14ยฐF to 122ยฐF |
| Service Temperature Range | -30ยฐC to 70ยฐC/-20ยฐF to 160ยฐF |
| Storage Temperature Range | -50ยฐC to 85ยฐC/-58ยฐF to 185ยฐF |
| Safe Overload | 150% of full scale |
| Breaking Overload | 300% of full scale |
| Seal Type | Welded seal |
| IP Rating | IP68 |
Note: You may need a software that can open/view STEP files.
| Manufacturer | Model |
| Artech | 90310 |
| Coti Global | CG-26S5 |
| Rice Lake | RLCSP1 |
| Vishay Revere Transducers | CSP |
| Vishay Revere Transducers | 692B |
